S-PM Geared Motors Right angle shaft type
S-PM geared motors achieve stable speed control and energy saving through sensorless control.
The speed control by the sensorless control is comparable to servo motors.
It is possible the device to miniaturize the device by hollow shaft installation.
S-PM geared motor can do the simplified position holding by the preliminary excitation function, in regard can drive frequently.
Enquiry about S-PM Geared Motors Right angle shaft type
Enter the security code shown above
GＶ-SSY series
This series is the compact type that minimize the distance from the output shaft to the case end face as possible. Therefore these motors are possible to be installed easily in small-sized machines.
These motors are designed to allow both flange and face-mouting methods (0.1-2.2kW).
GＶ-SHY series
This series is available for various installation methods: flange, face-mounting and foot-mounting.
And these are prepared for the wide range of gear ratios from 1/5 to 1/1440.(0.1-2.2kW)
Achieves high-precision operation
Optimally controls S-PM motor
- S-PM geared motors enable high-precision speed control through PM sensorless vector control, rather than using a sensor (encoder). In addition, torque in the low speed range can be adjusted using the parameter settings, and thereby improve starting torque.
- Range of PM sensorless vector control 1:10 (300 – 3000r/min)
Retains torque temporarily when stopped
- The preliminary excitation function can be used to generate temporarily retained torque through agitation when stopped.
The amount of retained torque can be adjusted using the parameter settings.

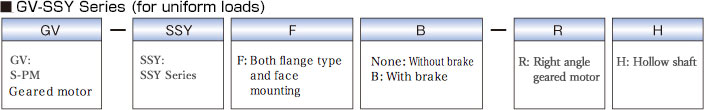

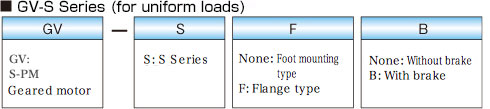

Model name
Series name
Parallel shaft
Right angle shaft
