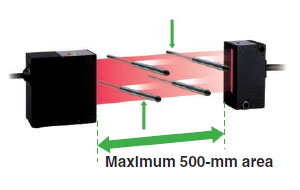

[Maximum 500-mm area] Measurable at any position

Measurements can be consistently taken within a wide area, whatever stage the work is at or whichever way it is inserted. It can now be set to positions without interference from the work feed and without limitations of size of work area.

‍

[Accurate!] 10-μm by non-contact method

ZX-GT is the only sensor with the ability to measure and locate position to an accuracy of 10 μm without contact. Unlike conventional through-beam laser sensors, the ZX-GT’s unique algorithm has the flexibility to meet a wide variety of applications, including the ability to accurately measure glass and mirror surfaces.

‍

[Small!] Compact like palm-top

Compact sensor head that can be set in the gap between equipment.

‍

‍

Its compact controller is a continuation of the ZX series.

‍

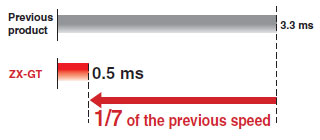

[New concept “TRIO”] 1/7 in speed compared with conventional products

With OMRONS unique TRIO (Triple parallel processing) algorithm, it is possible to take 2000 high-speed samples per second, 7 times greater than previously possible, greatly reducing tact time.
