Speed up production improvement

Utilize data to boost yield

Problem

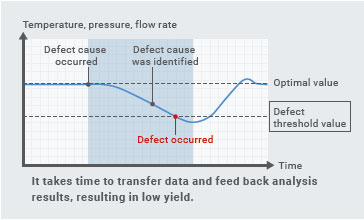

To increase yield, it is necessary to analyze data (e.g., temperature, pressure, and flow rate) accurately for finding optimal processing conditions and to feed the analysis results back to machines in real time.
Since accurate analysis requires fast and accurate collection of high‐resolution data in chronological order, the amount of data is so large that the data transfer to databases becomes a bottleneck

‍

NX5

With approximately four times the data transfer capability of the previous model *1, NX5 can transfer all of the increasing amount of high‐resolution production data to a database at high speeds.

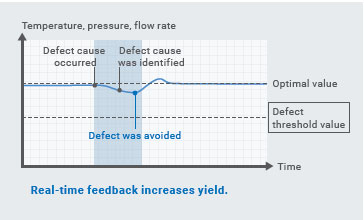

NX5 also ref lects results of database analysis in processing conditions in real time, contributing to defect prevention and yield improvement.
*1. NJ5 Machine Automation Controller

‍

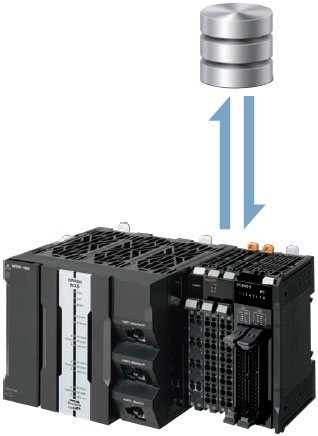

Real-time link between database server and control

High-speed
database communications

‍

Chronological collection of high-resolution data with fast cycle times

NX-HAD High-speed Analog Input Unit Sampling as fast as every 5 μs

NX-HTC Advanced Temperature Control Unit Temperature control with 0.01°C resolution

‍

Reduce equipment cycle time while improving quality

Problem

As processing is becoming more and more precise, high‐frequency collection of diverse data is required in order to improve product quality early on while maintaining fast equipment cycle times.
Another challenge is insufficient communication bandwidth when the increasing amount of data is transferred to a PC or other system.

NX5

NX5 can update command values to send to servomotors and stepper motors as fast as every 250 μs, enabling smooth cam motion, and high‐precision interpolation and phase adjustment between axes.
In addition, NX5 can collect data from all EtherCAT® I/O synchronously with less than 1 μs jitter.

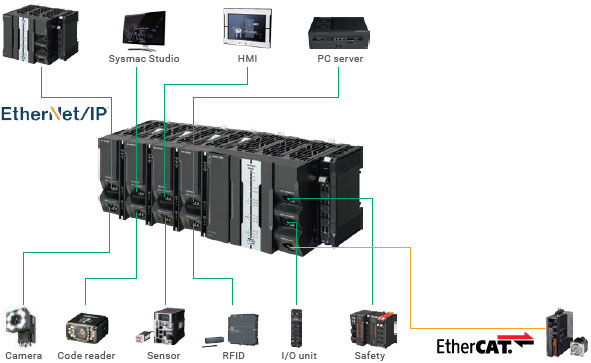

Up to four EtherNet/IP units, whose maximum allowed communications bandwidth per uni t is 40,000 pps, can be mounted to NX5, coping with high‐capacity communications. Fast cycle times can be maintained, and product quality can be improved early.

‍

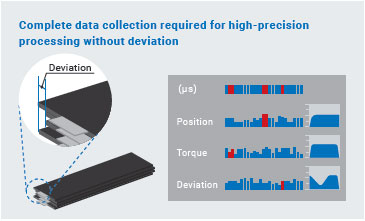

Collection of all necessary data

10 x 1 Gbps ports for high-speed, high-capacity communications

‍

Smooth cam motion and high-precision phase adjustment

Controls 32 axes with cycle time of 250 μs

‍

Speed up production line modification to accommodate demand changes

Increase equipment availability through integrated safety

Problem

Amid technological innovation such as EV and digital devices, manufacturers need to cope with rapid demand changes by building flexible equipment.
They design software, hardware, and networks in a modular manner in order to efficiently change or add production lines and processes, especially large production lines.

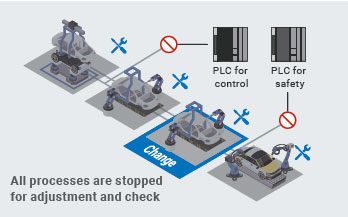

However, network power supply for all processes must be turned of f for change or addi tion because safety communications are configured within the same network segment. This affects a wide area, thereby prolonging lead time.

‍

NX5

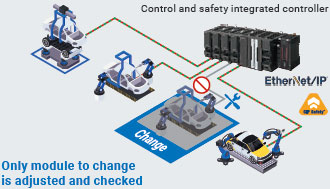

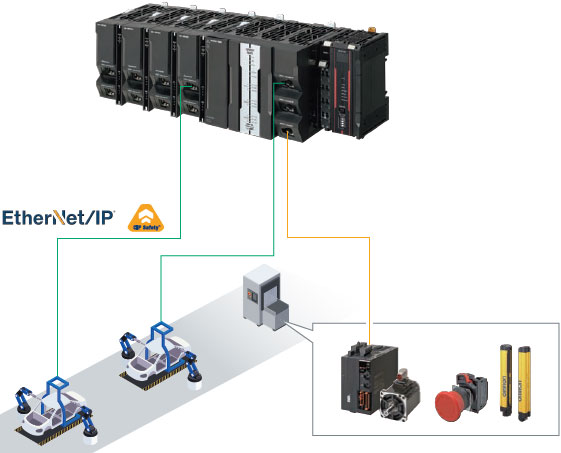

NX5 enables you to modularize network configurations including safety as well as software and hardware.
Since a process to change is localized, you can adjust and check only the process without stopping the entire line.
In addition, up to 8 separate networks and 254 safety connections allow a large production line to be flexibly built.
These benef its signif icantly reduce lead time for line changes.

‍

Modular networks

Safety control between machines Up to 10 separate networks

‍

Construction of large and flexible production line

High-speed synchronous safety control in machine
254 connections

‍

‍

Speed up problem‐solving in machines and production lines

Achieve both rapid commissioning and stable operation

Problem

Reduction in time required to set up and reliably operate a new machine is always a challenge. It is time- consuming to solve problems that are hard to be reproduced.
Defects and line stoppages during mass production need to be addressed quickly to improve overall equipment effectiveness (OEE).

‍

NX5

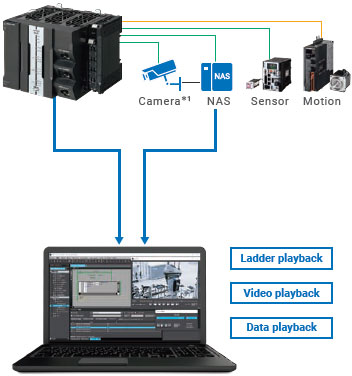

NX5 comes with the Automation Playback function as standard, collecting and playing back control behavior data to allow you to quickly identify problems that are hard to be reproduced.

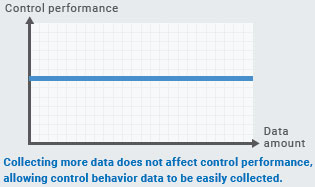

You can reliably use NX5 during mass production because data collection does not affect the control period.
Causes of problems can be quickly analyzed from huge amounts of playback data. This shortens the time required for finding the causes, contributing to increase in machine availability.

‍

Stable operation

Control-first architecture and multi-core MPU

Collection of data required for cause identification

Easy reproduction using variable data and recording data

‍

‍

*1. Recording time and quality depend on the specifications of the network camera.

‍

Playback data search
Jump to and reproduce time when variable value changed

Output causal search
Visualize cause of outputting variable
