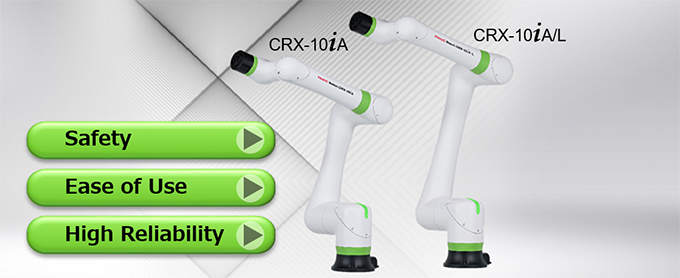

FANUC Robot CRX-10iA and CRX-10iA/L are collaborative robots designed to work alongside humans. They are lightweight, simply designed, and easy to access. Two models are available to meet a wide range of applications:

• CRX-10iA
  • Payload: 10 kg
  • Reach: 1,249 mm
• CRX-10iA/L
  • Payload: 10 kg
  • Reach: 1,418 mm

Safety

Operation is the same as other FANUC CR-series robots. The CRX robot stops automatically when it comes into contact with a human, ensuring safety. The robot is certified in accordance with the international standard ISO 10218-1.

Ease of Use

The lightweight arm and compact R-30iB Mini Plus controller allow for easy installation without the need for any lifting equipment.
Manual guided teaching and a new user interface on a tablet make operation and teaching simple and intuitive.
The under-flip motion on axis J3 allows easier access to the rear area (CRX-10iA/L).
Easy connection with third-party grippers.

In addition, it offers intelligent features such as iRVision (integrated vision) and iRPickTool.

High Reliability

Maintenance-free operation is supported by FANUC’s renowned design and long-standing experience, delivering a high level of reliability. This makes the robot well suited for industrial applications.
