The CompoNet network lets you connect to units and branch and extend cables by just mounting connectors on communications cables and units.
The cable connection and branching methods depend on the cable type and branching form.

‍

Four types of cable can be used on CompoNet networks.

• Round cable I (2-wire), commercially available
• Round cable II (4-wire), commercially available
• Flat cable I (without sheath) DCA4-4F10
• Flat cable II (with sheath) DCA5-4F10

‍

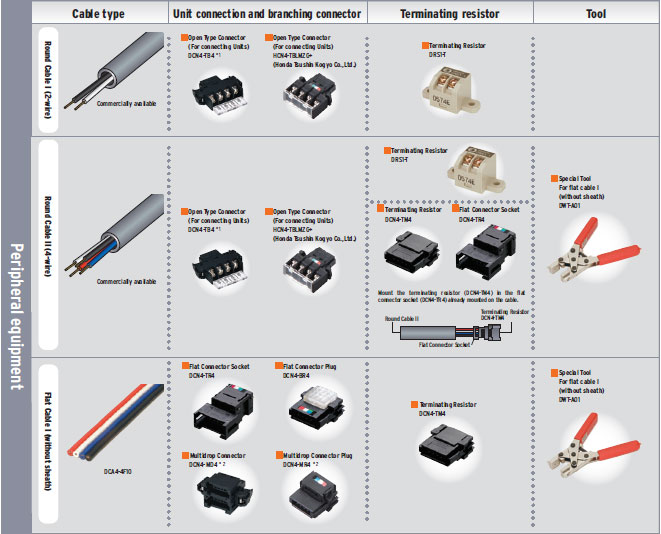

The terminating resistors, connectors, and special tools depend on the cable type.

‍

*1. Open Type Connectors (DCN4-TB4) are notconnectable with Bit Slave Units whose connectors are small. Use connectors made by Honda Tsushin Kogyo instead.
*2. Multidrop Connectors (DCN4-MD4) are not connectable with Bit Slave Units with Compact Connectors. Use Multidrop Connector Plugs (DCN4-MR4) instead.
