MELSEC iQ-F is Mitsubishi Electric's compact PLC series for everything from stand-alone machines to more complex systems. The series has built-in Ethernet and flash program memory with no battery to maintain, and the FX5U, FX5UC and FX5UJ also have a built-in SD card slot (the FX5S uses the optional FX5-SDCD). Programmed with GX Works3, it includes the FX5U, FX5UC, FX5UJ and FX5S CPU models.

Key features of the MELSEC iQ-F compact PLC

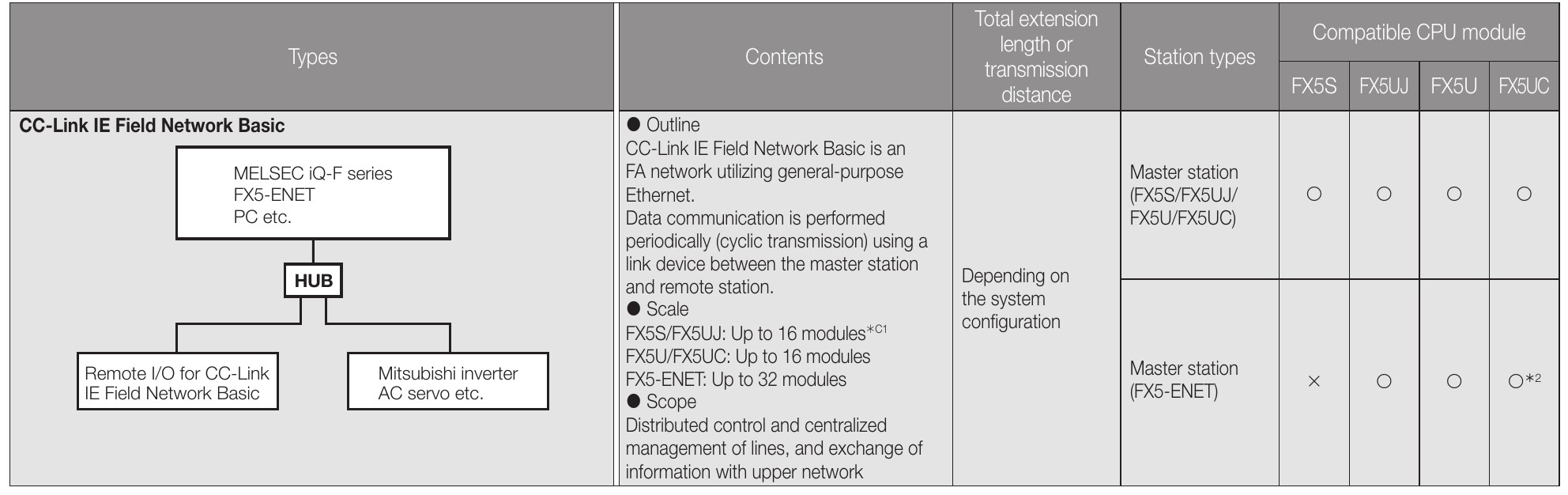

• Built-in Ethernet (100/10 Mbps, 8 connections): supports SLMP, socket communication, MODBUS/TCP, FTP, Web server, SNTP and a CC-Link IE Field Network Basic master. It also supports MELSOFT and VPN remote maintenance.
• GX Works3 programming: ladder, ST, FBD/LD and SFC, with function blocks and labels (IEC 61131-3). One engineering tool covers all CPU models.
• No battery, easy backup: flash program memory needs no battery. An SD/SDHC card (up to 16 GB) handles data logging, memory dump, backup/restore and firmware update. It is built in on the FX5U, FX5UC and FX5UJ, and the FX5S needs the optional FX5-SDCD.
• Built-in security: security key, IP filter, and file and remote passwords. The Web server includes a diagnostics page.
• Expandable for your machine: options include analog, temperature control, high-speed counter, positioning, simple motion (SSCNET III/H) and motion (CC-Link IE TSN) modules. Safety extension modules are also available (modules only, not the CPUs).
• Network options: CC-Link IE TSN, CC-Link IE Field, CC-Link, EtherNet/IP (via FX5-EIP), AnyWireASLINK, PROFIBUS-DP, BACnet/IP, MQTT and OPC UA.

Choosing a model: FX5U, FX5UC, FX5UJ or FX5S

• FX5U (flagship): 32/64/80 CPU I/O points and 64k/128k program steps. Power is AC 100–240 V or DC 24 V. It has built-in RS-485 (MODBUS RTU), built-in analog (2 channels in, 1 channel out), 4-axis positioning at 200 kpps (MT models only) and up to 8 high-speed counter channels at 200 kHz. LD instruction time is 34 ns at 64k steps.
• FX5UC (compact body): 32/64/96 I/O points, DC 24 V only, in connector or spring-clamp terminal types. It has 64k/128k steps, RS-485, 4-axis positioning at 200 kpps and 8 high-speed counter channels at 200 kHz. It has no built-in analog.
• FX5UJ (cost-effective): 24/40/60 I/O points, 48k steps, Ethernet, USB and an SD slot. It has 3-axis positioning at 200 kpps and high-speed counters of 4 channels at 100 kHz plus 4 channels at 10 kHz. It has no RS-485 and supports up to 8 extension modules.
• FX5S (simple, IoT-ready): 30/40/60/80 I/O points and 48k steps, with Ethernet and USB. It has 4-axis positioning at 100 kpps and high-speed counters of 4 channels at 100 kHz plus 4 channels at 10 kHz. It has no RS-485 and no extension modules, and uses adapters and one board for expansion.

Models in the series

Main MELSEC iQ-F models TKK can supply, from Mitsubishi Electric catalog L(NA)08428ENG-J. Contact TKK to confirm the right model for your system.

• FX5U CPUs: FX5U-32M, FX5U-64M and FX5U-80M (MR and MT types, ES, ESS, DS and DSS).
• FX5UC CPUs: FX5UC-32MT/D, FX5UC-32MT/DSS, FX5UC-32MT/DS-TS, FX5UC-32MT/DSS-TS, FX5UC-32MR/DS-TS, FX5UC-64MT/D, FX5UC-64MT/DSS, FX5UC-96MT/D and FX5UC-96MT/DSS.
• FX5UJ CPUs: FX5UJ-24M, FX5UJ-40M and FX5UJ-60M (MR and MT types, ES, ESS, DS and DSS).
• FX5S CPUs: FX5S-30M, FX5S-40M, FX5S-60M and FX5S-80M (MR and MT types, ES, ESS, DS and DSS).
• Extension I/O: FX5-8EX/ES, FX5-16EX/ES, FX5-8EYR/ES, FX5-8EYT/ES(S), FX5-16EYR/ES, FX5-16EYT/ES(S), FX5-16ER/ES, FX5-16ET/ES(S), FX5-32ER/ES, FX5-32ET/ES(S), FX5-32ER/DS and FX5-32ET/DS(S).
• Connector-type I/O: FX5-C16EX/D(S), FX5-C32EX/D(S), FX5-C16EYT/D(SS), FX5-C32EYT/D(SS) and FX5-C32ET/D(SS), plus -TS spring-clamp versions.
• Power and bus: FX5-1PSU-5V, FX5-C1PS-5V, FX5-CNV-BUS, FX5-CNV-BUSC, FX5-CNV-IF and FX5-CNV-IFC.
• Analog boards and adapters: FX5-3A-BD, FX5-4A-ADP, FX5-4AD-ADP and FX5-4DA-ADP.
• Temperature adapters: FX5-4AD-PT-ADP and FX5-4AD-TC-ADP.
• Analog and temperature modules: FX5-4AD, FX5-4DA, FX5-8AD and FX5-4LC.
• High-speed counting and positioning: FX5-16ET/ES-H, FX5-16ET/ESS-H, FX5-2HC/ES, FX5-20PG-P and FX5-20PG-D.
• Simple Motion and motion: FX5-40SSC-S and FX5-80SSC-S for SSCNET III/H; FX5-40SSC-G and FX5-80SSC-G for CC-Link IE TSN.
• Safety extension: FX5-SF-MU4T5 and FX5-SF-8DI4.
• Networks: FX5-ENET, FX5-EIP, FX5-CCLGN-MS, FX5-CCLIEF, FX5-CCL-MS, FX5-ASL-M, FX5-DP-M and FX5-OPC.
• Serial: FX5-232-BD, FX5-485-BD, FX5-422-BD-GOT, FX5-232ADP and FX5-485ADP.
• FX5S option: FX5-SDCD SD card module.
• FX5-ENET/IP: last order 31 Dec 2026 and production ends 31 Mar 2027, replaced by FX5-EIP.

Need help choosing the right MELSEC iQ-F CPU, I/O configuration and options for your machine? Contact TKK to confirm the model that fits your application.
