Energy-efficient through active cyclone technology and inverter control, while delivering the highest airflow in its class. The unit can generate industry-leading airflow with a front-mounted turbo fan, an active cyclone that provides positive pressure, and a cylindrical structure that maximizes cyclone performance. In addition, the inverter controls a high-efficiency PM motor to further reduce energy consumption, allowing the motor speed to be selected in four levels from 70% to 100% according to the required airflow.

*The 400 W model is equipped with an induction motor.

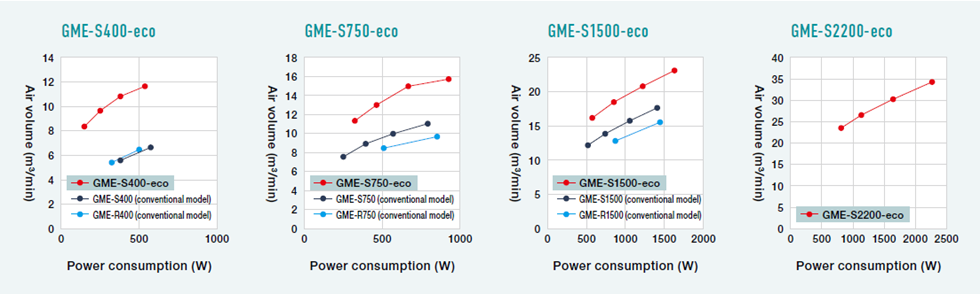

• Energy-efficient structure

Able to generate a large volume of airflow even with minimal power consumption, thanks to an aerodynamically streamlined design that minimizes losses from parts not involved in the collection process.

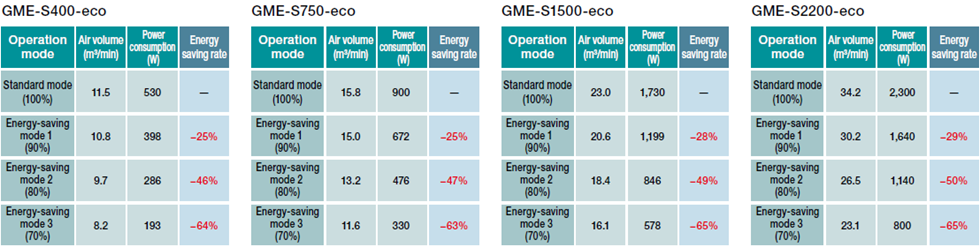

• Energy-efficient through inverter control.

The motor speed can be selected as needed at 70%, 80%, 90%, or 100% to help reduce energy consumption.

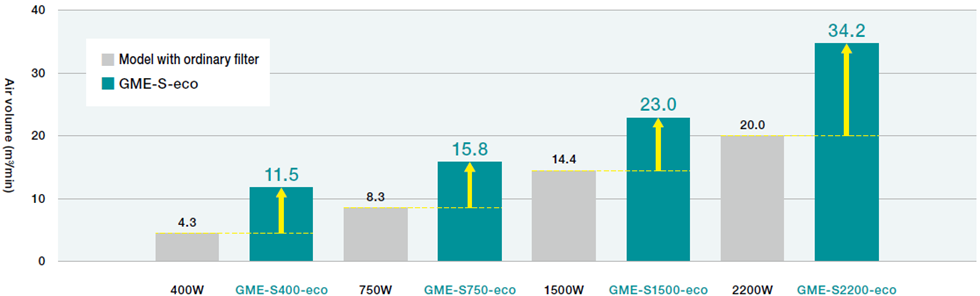

• Reduce motor power to save energy.

Compared with models that use conventional filters, the oil mist collector equipped with a slightly smaller motor can still deliver the required airflow, significantly reducing energy consumption and initial costs.

*Based on internal company research.

‍

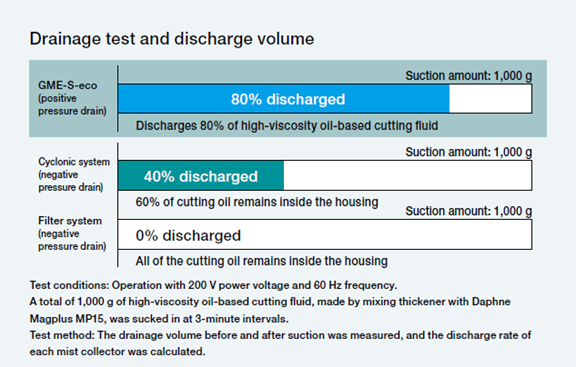

Positive pressure helps drain liquid and prevents the accumulation of contaminants inside.

With a structure that places the turbo fan at the very front, strong positive-pressure airflow is generated toward the drain outlet. This airflow enables smooth discharge not only of oil mist separated by the active cyclone system, but also of foreign matter such as cutting debris, which is expelled outside through the drain outlet.

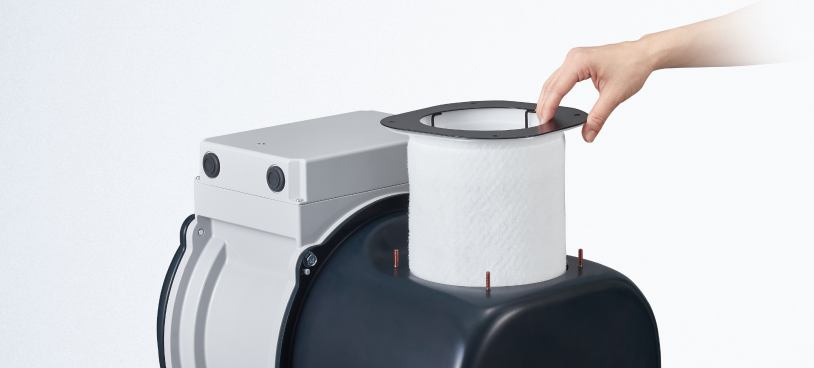

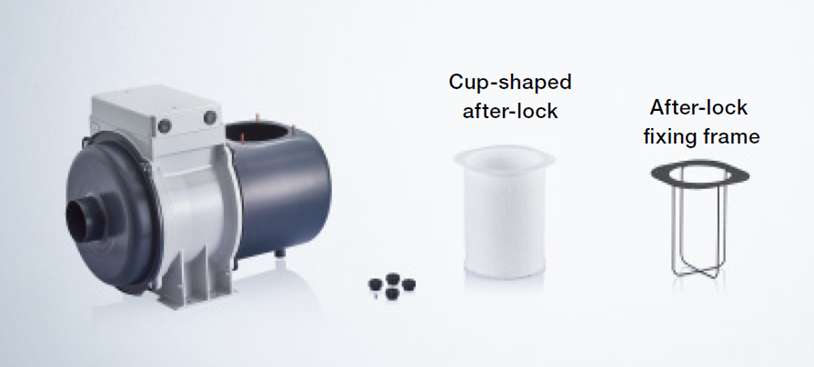

Cup-shaped after-lock design for easy maintenance and convenient operation.

“This product uses a simple oil mist collection system, separating mist with an active cyclone and coalescing it through a bellmouth air passage. As a result, the only periodic maintenance required is replacement of the cup-shaped after-lock. The cup-shaped after-lock can be easily removed and replaced by loosening the UFO nut and knob nut, and it also features a top flange that serves as a handle to prevent hands from getting dirty.

‍

High-Efficiency Oil Mist Collector

GME-S400-eco

• Built-in motor power: 0.4 kW, 2P (totally enclosed fan-cooled motor)
• Maximum airflow: 11.5 m³/min
• Collection efficiency: 99%
• External dimensions (H × W × D): 444 × 368 × 530 mm
• Weight: Approximately 23 kg

GME-S750-eco

• Built-in motor power: 0.75 kW, 4P (totally enclosed fan-cooled motor)
• Maximum airflow: 15.8 m³/min
• Collection efficiency: 99%
• External dimensions (H × W × D): 484 × 408 × 539 mm
• Weight: Approximately 24 kg

GME-S1500-eco

• Built-in motor power: 1.5 kW, 4P (totally enclosed fan-cooled motor)
• Maximum airflow: 23.0 m³/min
• Collection efficiency: 99%
• External dimensions (H × W × D): 544 × 468 × 574 mm
• Weight: Approximately 31 kg

GME-S2200-eco

• Built-in motor power: 2.2 kW, 4P (totally enclosed fan-cooled motor)
• Maximum airflow: 34.2 m³/min
• Collection efficiency: 99%
• External dimensions (H × W × D): 544 × 468 × 674 mm
• Weight: Approximately 35 kg
