Flexowell is a registered trademark of ContiTech Transport and system GmbH; used by permission.

Features

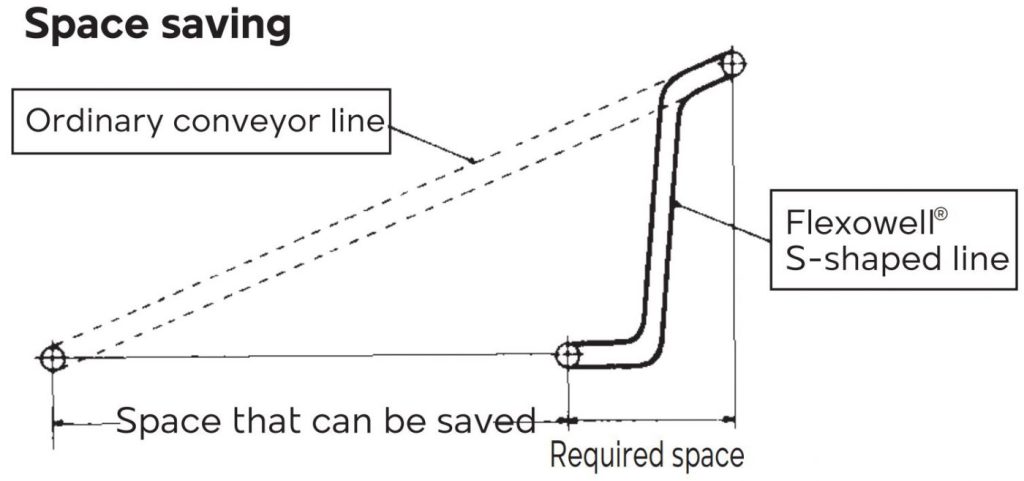

Space saving

Vertical conveyance substantially saves space compared with conventional conveyor facilities.

Freely design conveyor line angles

Easy to design the required conveyor angle, from flat to steep incline, depending on the facility layout.

High capacity conveyance

Significantly improved cross-section area, with dramatically increased load capacity compared with trough conveyors.

High capacity conveyance

Significantly improved cross-section area, with dramatically increased load capacity compared with trough conveyors.

Reduced facility costs

Small pulley diameters may be used, without the need for skirt boards. Facility costs are reduced with flat rollers.

Structure

Components

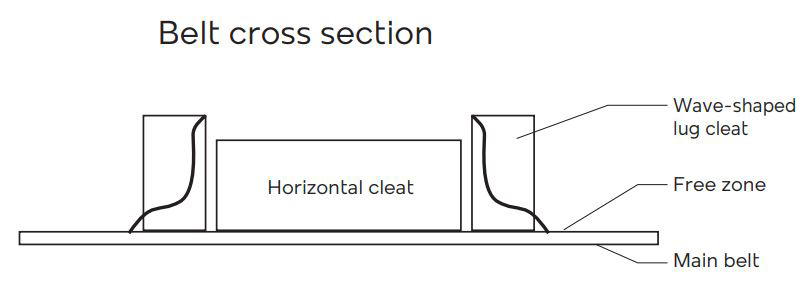

Flexowell® Belts are made up of the main body belt, wave-shaped sidewalls and horizontal cleats. The three components are rigidly cold-bonded by mechanical means. Please consult with us, as various combinations are available, depending on the items conveyed, volume and the angle of inclination.

Combination types (Types 1, 2 and 3 are standard)

Type 1: No free zone, no horizontal cleats
For lines with 0-16° inclinations, without angle change in conveyance.

Type 2: No free zone, with horizontal cleats
For sharp inclines, without angle change in conveyance.

Type 3: With free zone and horizontal cleats
For sharp inclines, with angle change(s) in conveyance.

Type 4: With free zone, without horizontal cleats
For lines with 0-16° inclinations, with angle change(s) in conveyance.

Standard combination (Flexowell)
